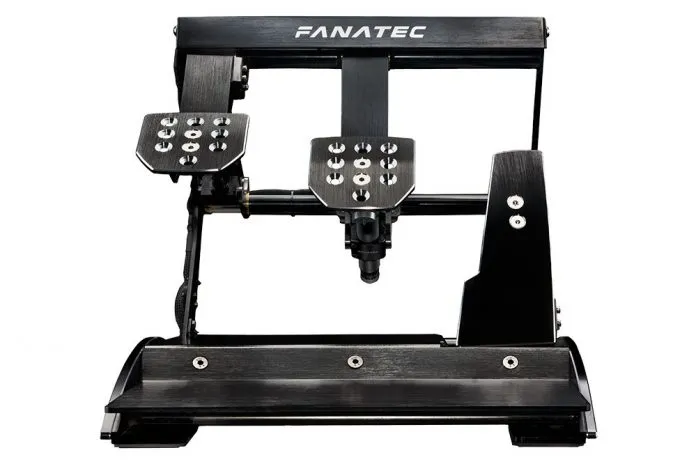

ClubSport Pedals V3 inverted

Realism to the max – that’s the ideology of these inverted pedals. ​Pivot points, ​arrangement, distances and overall feeling, just like in a real car!

These pedals come equipped with a resistance-adjustable ClubSport Damper Kit, mounted and ready-to-use on the brake pedal. In combination with the toolless adjustment of the brake resistance (as in the V3 pedals) these pedals delivers pure realism right out-of-the-box!

The clutch and brake pivot points are inverted to the upper side of the pedals, attached to a very solid frame, just like you would expect from the Fanatec ClubSport Series. The longer pedal travels and the pedal distances are ​inspired by real cars in every detail.

Images

Video

Features

• Turning points of brake and clutch on top side like in real cars
• High resolution pedals with magnetic and contactless sensors on gas and clutch for a long life and maximum performance
• Pressure sensitive brake with custom made 90 kg load cell sensor
• Adjustable brake stiffness and travel without tools
• 12bit resolution (4096 values) on all axis
• Alternative D-shape race plates in curved design
• Pedal extension to adjust the angle of the pedal plate and to change the angle of the whole pedal arm
• Brake sensitivity can be adjusted through the tuning menu of the wheel and during the race
• Vibration motor on throttle pedal indicates rear wheel spin and oversteer (control by games is possible via Fanatec Wheel SDK)
• Vibration motor on brake pedal to simulate ABS and indicate locking tires (controlled by Fanatec wheels: Compatible to all games. Dynamic control by games is possible via Fanatec Wheel SDK)
• Design of the gas pedal allows quick exchange of the springs. Two springs with different strength are included
• Damper Kit assembled out-of-box at brake, optional damper kit for gas sold separately. The hyraulic dampening resistance can easily be adjusted with a knob
• Full multi platform compatibility, depending solely on the platform compatibilities of the connected Wheel Base/Racing Wheel
• Full metal construction of CNC-machined aluminum
• Ultimate adjustability: Position of pedal plates in all directions, angle, spring strength at throttle, brake sensitivity, brake travel
• Compatible to the colour kits to allow perfect optial customisation (Note: colour kit footrest is shorter than standard V3i footrest!)

Compatibility

Peripherals:

• Compatible to any Fanatec Wheel Base or Fanatec Racing Wheel with RJ12 Pedals connector. To connect Fanatec Wheels with PS/2 Pedal Socket, you need the additional PS/2 to RJ12 cable.
• Compatible to ClubSport Pedals V3 Brake Performance Kit
• Compatible to ClubSport Pedals V3 Damper Kit (Throttle Pedal)
• Dedicated plug for the ClubSport Handbrake
• The pedals are not compatible to the ClubSport USB Adapter. Please use the included USB connector (PC only).

Platforms:

• PC:
  • If you connect it to a Fanatec Wheel Base / Racing Wheel it will be compatible to all racing games. For that case, please check the compatibility details on the product page of the connected product.
  • It will work with any racing wheel, also of​ any other brand (Logitech, Thrustmaster, etc), if the pedals are connected to PC via USB and if the game supports a second controller. ​E.g. these PC games support a second USB controller:
    • iRacing
    • Assetto Corsa
    • Project Cars
    • GTR 2
    • Race 07
    • rFactor
    • Live for Speed
    • …and many others
• Consoles: This pedal set can be used on gaming consoles, if connected through a Fanatec Wheel Base / Racing Wheel. Please check the information on the product page of the Fanatec product through which they will be connected to the console. It will not work on consoles using the direct USB Connection or a ClubSport USB Adapter.

Price: 599.95€
