Cooler Master Introduces Its Dyn X Cockpit

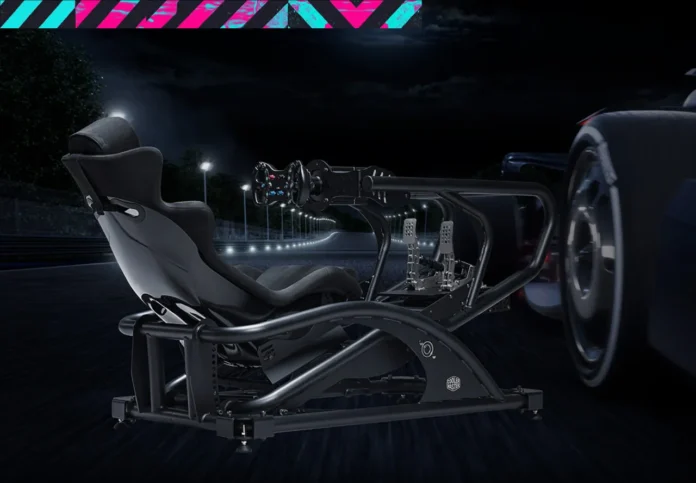

coolermaster dyn x cockpit

It seems like something is moving beyond what we see as many companies are diving into Sim Racing. First timidly, and then with more strength.

Cooler Master follows Asetek’s momentum, from a different perspective, as they debut in this sector with a tubular-designed cockpit aimed at accommodating all positioning options, from Formula to GT and street driving.

In the video, they promote it using Direct Drive bases and high-end pedals, suggesting that they take into account the possibility of vibrations and tensions that most mainstream manufacturers do not consider. The official specifications are as follows:

Product Number IXM-DX1-K-NN-1 (Cockpit), IXM-RS1-KB-NN-1 (Racing Seat)
Component 1 Dyn X – Cockpit
Ergonomics Group 5 – 99th Percentile Men
Assembled Dimensions (Upmost Position) 1707mm x 756mm x 1044mm (LxWxH)
Assembled Dimensions (Downmost Position) 1591mm x 756mm x 998mm (LxWxH)
Ready for Motion Actuator System Yes
Buttkicker Mount Yes
Included Steering Wheel Mount Front Mount
Number of Driving Positions 14
Frame Tubing Material Steel (JIS STKM 13A)
Frame Tubing Diameter 50.8mm
Frame Tubing Wall Thickness 2mm
Gusset Thickness 5mm
Steering Wheel Mount Material (All Mounts) Steel
Steering Wheel Mount Material Thickness (All Mounts) 6mm
Pedal Tray Material Aluminum (5052)
Pedal Tray Material Thickness 5mm
Seat Mount Material Steel
Seat Mount Material Thickness 3mm
Steering Wheel Slide (Forward/Back) 300mm
Steering Wheel Mounting Positions (Front & Side Mount) 6 (3 regular + 3 with mount inverted)
Steering Wheel Mount Degrees of Adjustment (Front & Side Mount) Position 1: 50°, Position 2: 47°, Position 3: 44°, Total: 80° (regular + inverted)
Steering Wheel Mount Height Adjustment (Front & Side Mount) 81mm (6 positions)
Steering Wheel Mounting Positions (Tray Mount) 4 (2 regular + 2 with mount inverted)
Steering Wheel Mount Degrees of Adjustment (Tray Mount) Position 1: 26°, Position 2: 24°, Total: 60° (regular + inverted)
Steering Wheel Mount Height Adjustment (Tray Mount) 140mm (4 positions)
Pedal Tray Slide (Forward/Back) 400mm
Pedal Tray Tilt (Up/Down) ± 45°
Pedal Tray Lift (Up/Down) ±100mm
Seat Slide (Forward/Backward) 150mm
Seat Tilt (Up/Down) 3 – 27°
Seat Lift (Up/Down) 30mm
Number of Frame Tilt Positions 14
Frame Tilt 3 – 22°
Combined Frame/Seat Tilt 6 – 49°
Component 2 Dyn X – Racing Seat
Seat Shell Material Fiberglass Reinforced Plastic (FRP)
Seat Fabric Material Premium Synthetic Suede (Eco-suede)
Seat Padding Multi-density Foam / Shock-absorbent Foam
Harness Slots 5
Headrest Detachable and Adjustable



It has compatibility with motion systems, Buttkickers, side mounting bases like Fanatec DD1, flat ones for Logitech G PRO Racing Wheel or T818 Ferrari, SRP-GT 3P pedals, etc. It doesn’t cover 100% of everything available in the market, but they have considered a significant number of setups, which is uncommon for manufacturers of this size. There are no prices or release dates available yet, although it appears that the seat and cockpit will be sold separately, along with various accessories.

The official website contains all the information available at the moment, and you can access it by clicking here.
