Pimax Crystal

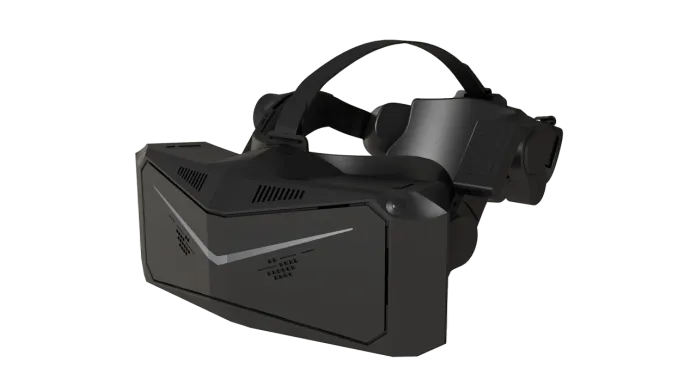

crystal view1

Pimax is a Chinese company based in Shanghai founded in 2015. From that moment until now, it has been a machine for launching products. Our colleague Óscar knows this well because they provide Real o Virtual with the most innovative material every few months. In recent times, Pimax has found that the VR’s stable niche is in simulators, and they have tried to adapt their most mature product to this market.

You can read a full review here.

INTRODUCTION

The Pimax Crystal is an virtual reality headset announced by Pimax on May 31, 2022 and released in May 2023. The headset is similar to the unreleased Pimax 12K QLED headset and is hybrid standalone that can operate with or without a PC. The announced specifications are up to 160Hz refresh rate, up to a 140 degree diagonal field of view at a pixel density of 42ppd. The panels are QLED type and the lenses are interchangeable optical aspheric glass. The headset was announced to use inside-out tracking and optional lighthouse tracking. The headset has integrated Wifi 6e wireless and an optional 60Ghz WiGig adapter. The headset also integrates eye tracking with a motorized automatic IPD adjustment capability. The Crystal headset was expected to have an MSRP of $1,899 but the final price was $1599.

IMAGES

FEATURES

DISPLAY QLED + Mini-LED Display
2880*2880 pixels per eye
Brightness: 200nit
Local dimming: 20000:1
Colors: 100% NTSC
Motion-to-Photon (MTP) Latency: 15ms
Refresh rate: 72Hz/90Hz/120Hz/ (144Hz/160Hz in testing mode)
HDR
OPTICS Customized replaceable aspheric optical lens, with 35PPD peak fidelity
FIELD OF VIEW Horizontal:125°
Diagonal:140°
INTERPUPILLARY DISTANCE (IPD) Manual IPD and Automatic IPD
Supported IPD range: 58-72mm
AUDIO Original off-ear speakers (Optional high-fidelity DMAS headphones)
3.5 mm audio jack 1x
microphones 3x
DIMENSIONS 280.10mm*108.20mm*135.90mm
CONNECTIVITY Standard Pimax Custom 4.5m DP cable
POSITIONAL TRACKING Inside-out (Standard cover/MR cover)
Outside-in (Lighthouse cover)
EYE TRACKING 120Hz with sub-degree accuracy; 5-dot calibration for foveated rendering
Battery 6000mAh replaceable battery + 120mAh inside battery supports hot swap
INSIDE CHIPS Qualcomm Snapdragon XR2, Pimax Customized PCVR Engine Dual-processor chips8+256G
VR MODE PCVR + Standalone VR

Controller

BATTERY 600mAh use type-c for charging
SYSTEM UPGRADE Support OTA upgrade
WEIGHT 126g

PRICE

  • 1999,90€ (VAT included)

MANUFACTURER WEBSITE

On the Pimax official store you can use the coupon code boxthislap to save 50 dollars, from its cheaper starting price.

BUY NOW: Pimax Crystal for 1999 euros on Amazon


This website uses affiliate links which may earn a commission at no additional cost to you.
