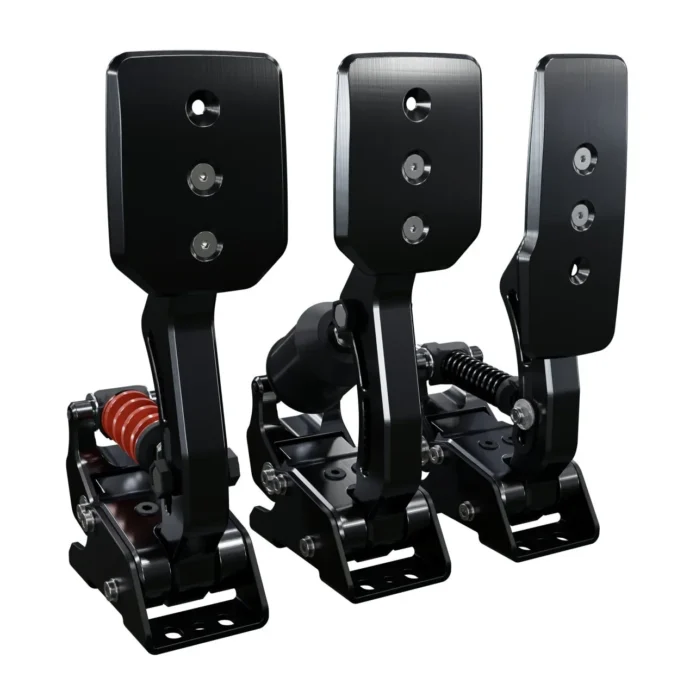

Simgrade Thera Pedals

wtbc3

Simgrade is a Finnish simracing company that debuted with R7 pedals. Thera is a pedal set designed for the medium market having the tech quality of the brand.

Billet aluminum structure. Black anodized finish. Ultra smooth, silent operation. Rigidity: like no other. Super fast & easy adjustments. Zero lateral play. Linear-force operated, high accuracy clutch – the first on the market.

Inspired by these features? If yes, SIMGRADE° Thera pedals are the #1 choice for your sim racing setup.

TECH SPECS

  • Billet aluminum
  • Black anodized finish
  • 200 kg load cell in the brake pedal, 110 kg max pedal force
    • Load cells used in throttle and clutch as well
  • Calibration software with
    • Adjustable dead zones
    • Non-linear response curves
    • Save to file & load profile from file feature
  • 12 bit (4096) resolution
  • Custom elastomer in the brake pedal provides extremely progressive feel and long life span
  • 16 separate settings for brake stiffness (elastomer 8, spring 8) with super fast and easy adjusting procedure – no tools required
  • 12 separate settings for throttle stiffness with super fast & easy adjusting procedure – no tools required
  • Optional high rate spring included for the brake pedal with progressive resistance and sublime return phase feel
  • Stainless steel ball bearings in all major pivot points
  • Ultra smooth operation ensured by using ball bearings, guided springs and elastomers
  • Zero lateral play at the pedal arms
    • Probably the most rigid pedals on the market
  • No lubrication required
  • Silent operation by design
  • No metal-to-metal contact on end stoppers
  • Super-narrow design allowing the user to adjust pedal-to-pedal distance to personal preference
    • This is further emphasized with 35 cm cable length (all pedals)
  • Mounting: 4 x M6 bolts, mounting pattern (click to open) 80 x 24 mm
  • Robust design with minimal amount of parts at risk to fail
  • 5 year warranty
  • Brake system pressure build-up simulation
    • From the point the brake pads touch the discs, with a highly progressive and realistic feel
  • Brake pad to brake disc ‘gap feel’ simulation feature
  • FEA-analyzed design
  • +/- 8.5 degrees angle adjustment in each pedal
  • Slot hole mounting: adjustable foot-to-pedal distance
  • Pedal faces distance adjustable with spacers
  • Damper for the throttle pedal: estimated availability Q1-Q2 2023
  • Light weight: ~900 g per pedal
  • Double shielded USB cable (1.8 m)
  • Platforms
  • Designed, manufactured and assembled in Finland

Price

  • Set 2 pedals price: 779,00 € Incl. VAT
  • Set 3 pedals price: 1079,00 € Incl. VAT
  • Simgrade Thera

Manufacturer site

Simgrade Thera
