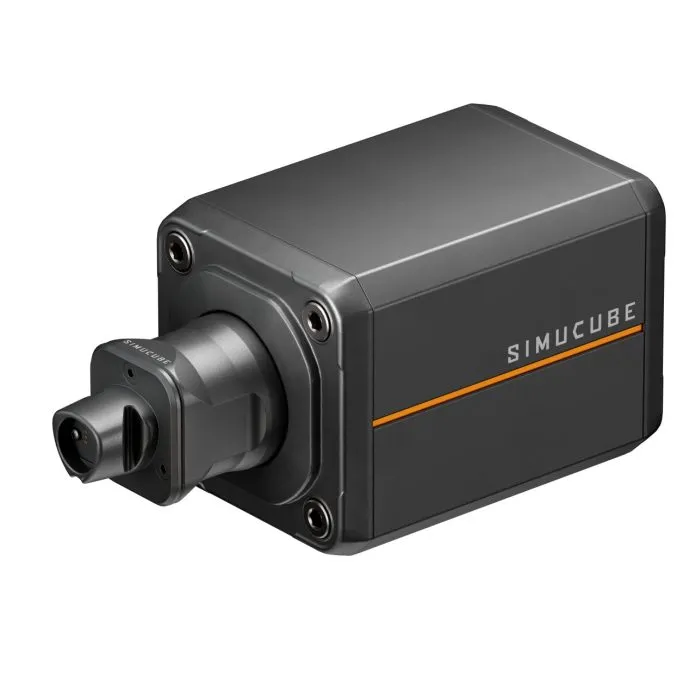

The Simucube 3 Sport Direct Drive System raises the bar for sim racing steering wheel systems. It offers the most realistic and detailed force feedback currently available through a high torque, brushless motor. Designed for sim racing enthusiasts, the Sport 3 offers a serious amount of power with up to 15Nm of direct drive torque. Highly responsive and accurate, it provides a highly detailed driving experience.
Simucube 3 Sport shares the same features as the Simucube 3 Pro model, delivering benchmark direct drive force feedback with 15 Nm peak torque instead of 25 Nm, powered by the new-generation SPM motor. It’s still hardware you buy once — only now in a lighter package.
Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.
If you want to use more than one Simucube Link Hub device such Simucube 3 and ActivePedals, please purchase the Teltonika Ethernet Switch.
Videos
Simucube 3 is the new flagship direct drive force feedback wheelbase – the engine that turns steering from an accessory into a professional racing instrument, as close as sim racing gets to a real race car.
Simucube 3 delivers even more precise, smooth, industry-leading force feedback – with easier configuration, and exceptionally efficient premium industrial-grade servo motors engineered exclusively for Simucube. Push with everything you’ve got. It will never hold you back.
Dimensions
- Wheel base dimensions: 135 x 135 x 278 mm
- Package dimensions: 190 x 300 x 390 mm
- Mounting: Front and Bottom
- Mounting hole pattern DIA: 135 mm and 78,4 mm
- Flange centering feature DIA: 110 mm
- Wheel base weight: 8.7 kg
Specifications
- Motor type: Direct drive optimized SPM motor
- Max torque: 15 Nm
- Angle sensor: 23-bit absolute (8 000 000 steps)
- Power supply: 280 W
- Warranty: 3 years
Included in Package
- 1x Simucube 3 Sport wheelbase
- 1x Power adapter
- 1x RJ45 Cable
- 1x AC power cord
- 1x Quick Start Guide
- 1x Control box
Fasteners kit
- 4x M8 washer
- 4x M6 washer
- 2x M5 washer
- 4x M8x35 allen head bolt
- 4x M8x30 allen head bolt
- 2x M5x30 allen head bolt
- 4x M6x16 allen head bolt
- 2x M5 t-slot nut 8mm slot
Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub
