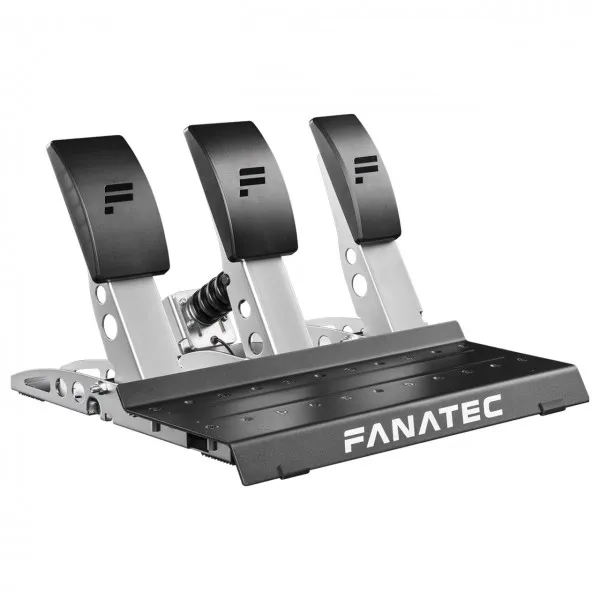

Fanatec CSL Pedals LC

New Fanatec CSL Pedals LC to help newcomers with quality hardware at entry level and Load Cell.

• The CSL Pedals LC is a bundle of the CSL Pedals and CSL Pedals Load Cell Kit.
• The stability of the all-metal design means it is built to last.
• Both the throttle and clutch axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensor and consistent performance.
• Brake with consistency and confidence with the CSL Pedals Load Cell Kit. You’ll be smashing your personal best laps in no time.
• A load cell brake system measures pressure rather than travel. This means the pedal feel is much more like braking in a real car, and you’ll quickly improve through muscle memory training.

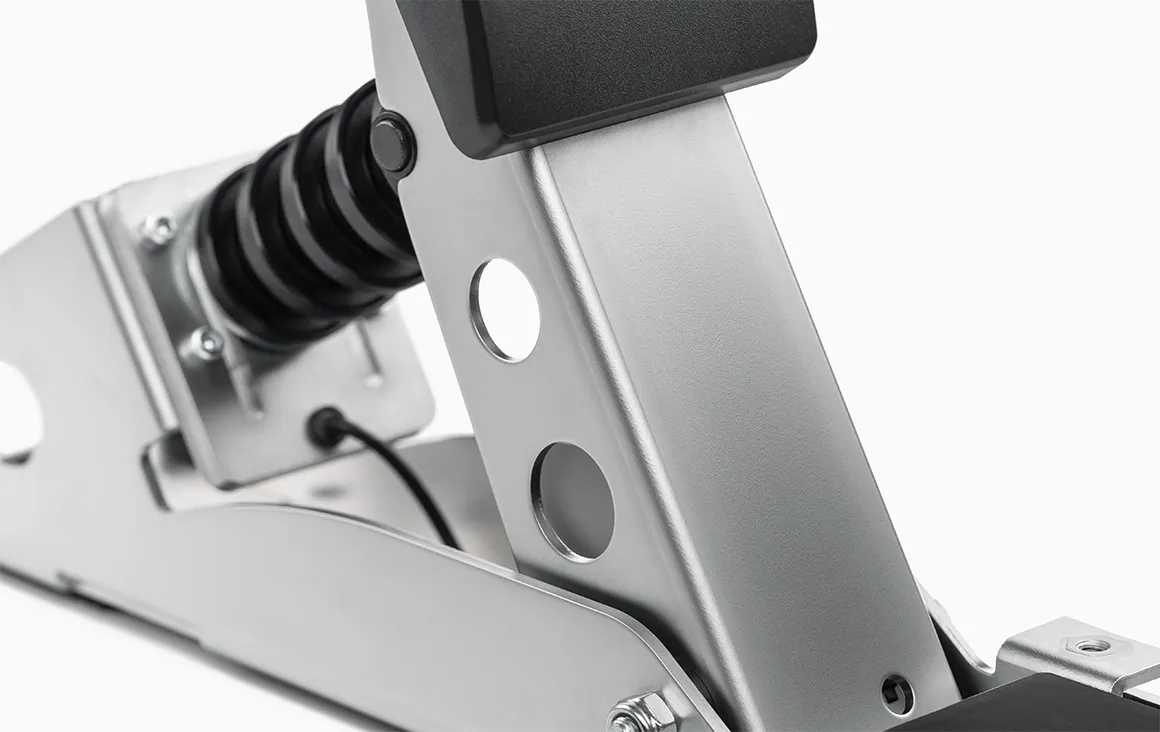

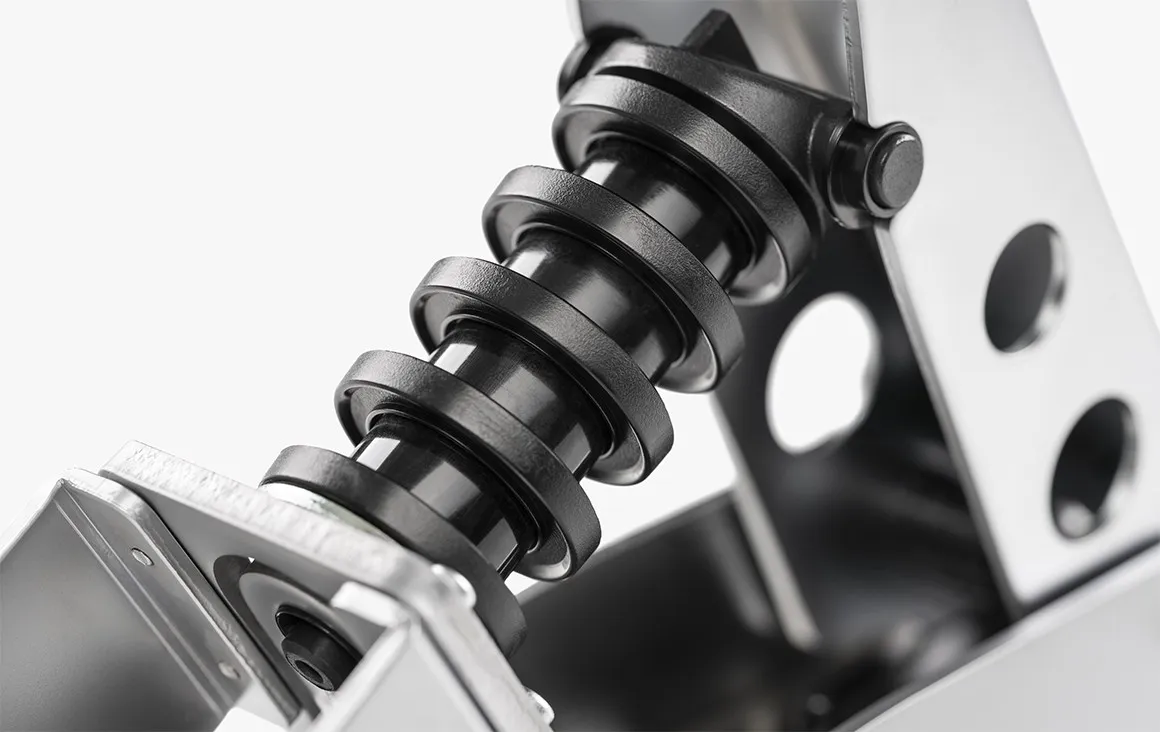

• The elastomer stack on top of the load cell sensor provides a strong, realistic feeling of resistance under compression.
• The ultimate CSL Pedals upgrade: a realistic brake plus a clutch pedal.
• The CSL Pedals Load Cell Kit completely replaces the brake pedal and upgrades the electronics. The standard brake pedal can then be used as a clutch pedal. The CSL Pedals Load Cell Kit is the ultimate upgrade for immersion, precision, and consistency.
• Much like the CSL Pedals, the Load Cell Kit features an all-metal design, using a custom-designed load cell sensor.

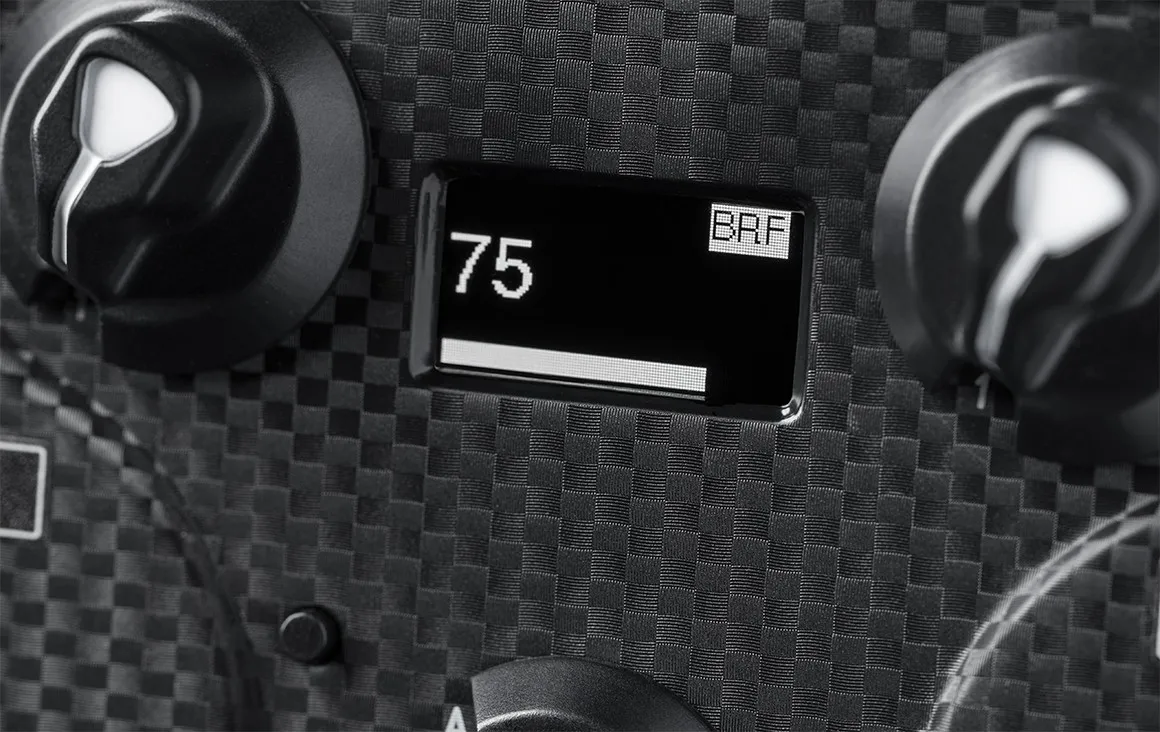

• The amount of braking force required can be easily tweaked through the Fanatec Tuning Menu (or Fanatec Control Panel on PC)*. The upgraded electronics allows manual calibration of all three pedal axes.

Images

Video

Features

• Three-pedal set (clutch, brake, throttle)

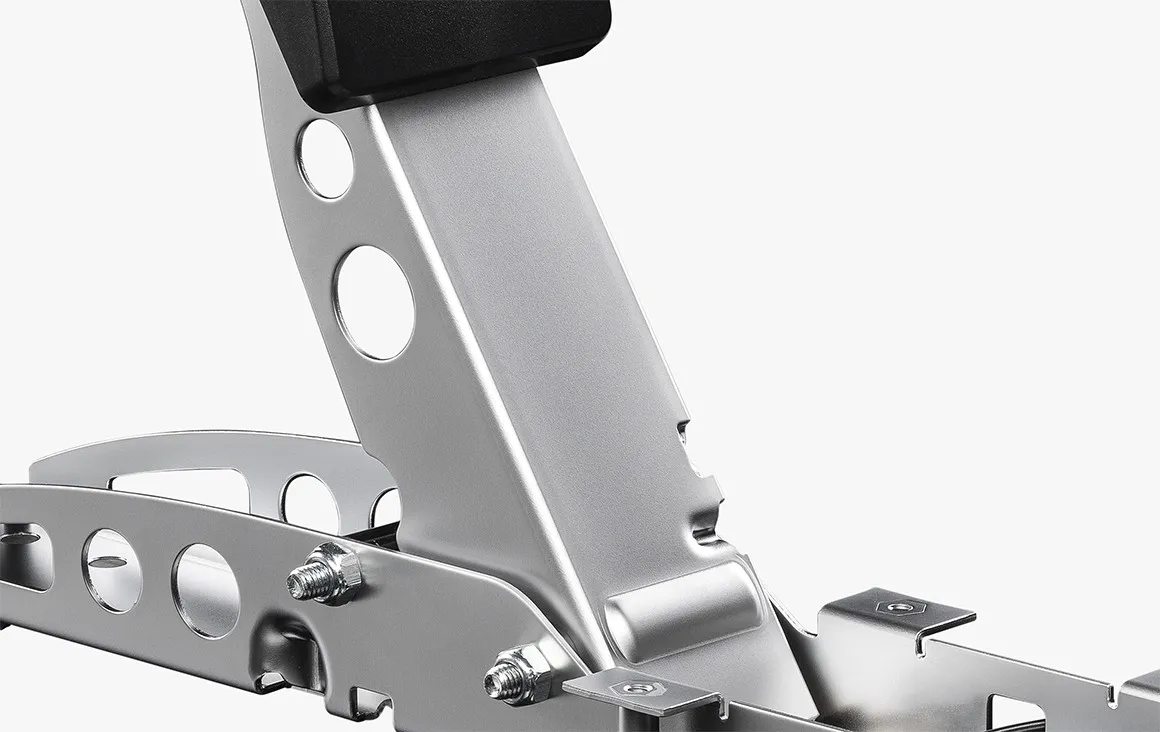

• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)

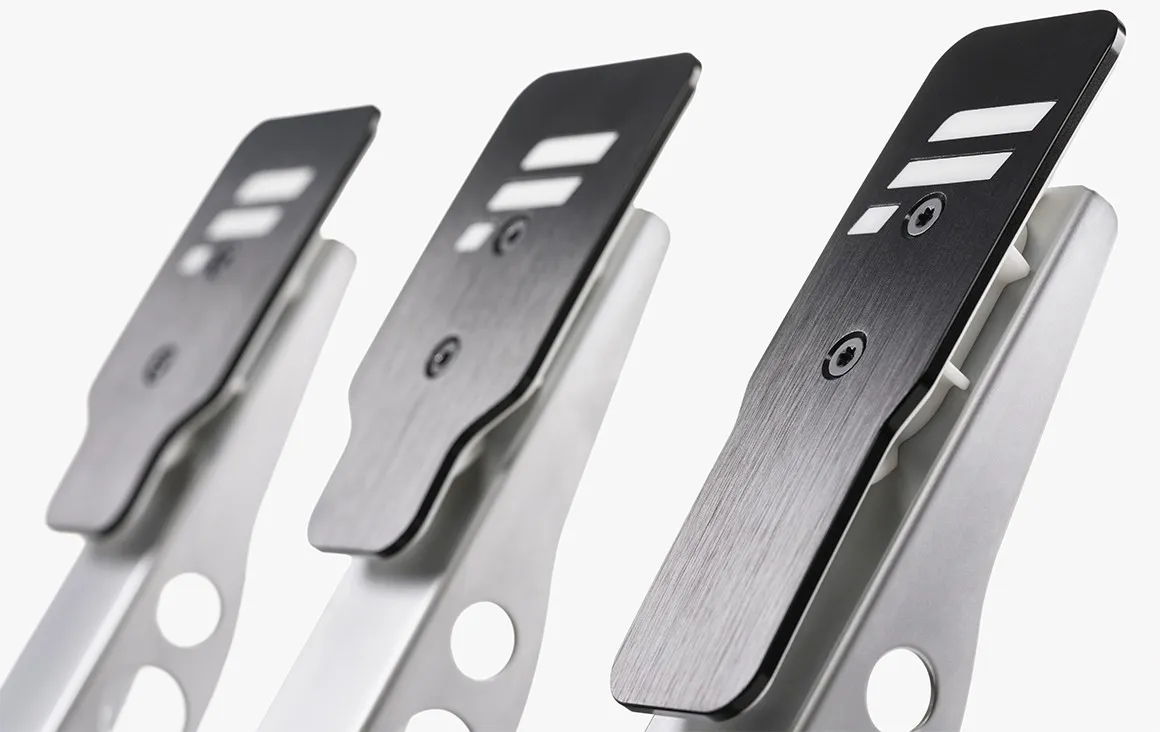

• Optional anodised aluminium pedal plates

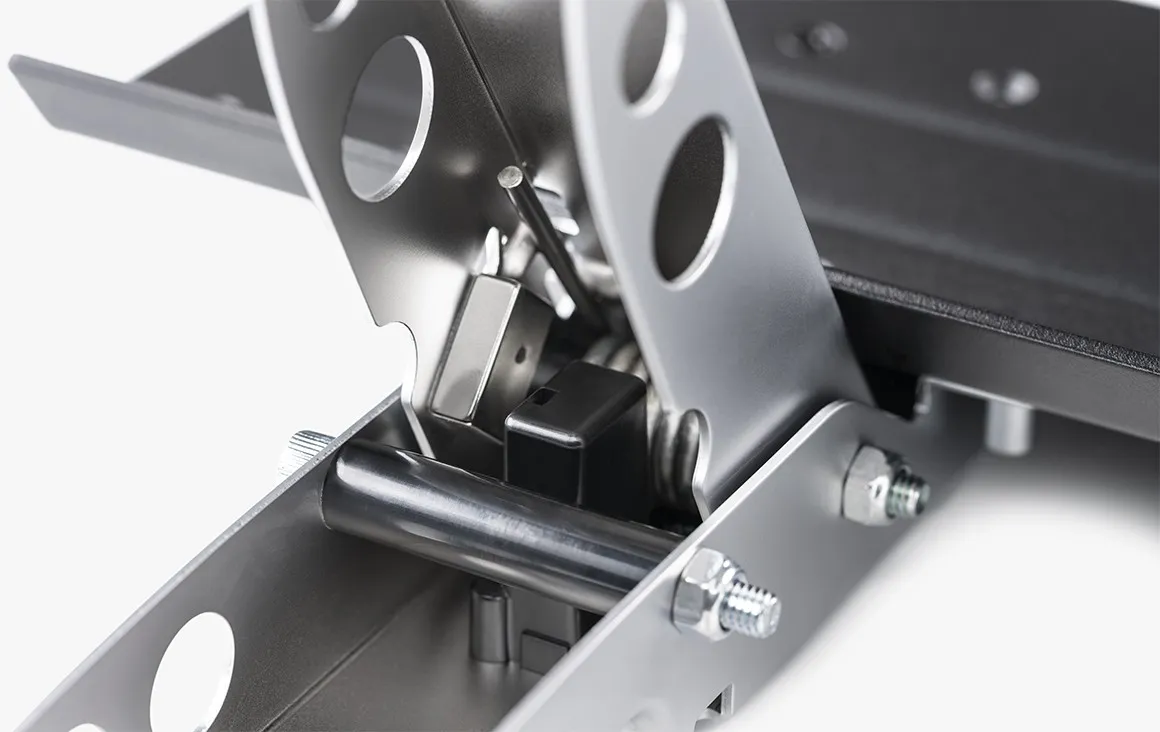

• Contactless Hall sensors (12-bit) on both clutch and throttle for high precision and durability
• Clutch pedal spring is stiffer than throttle pedal spring
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest

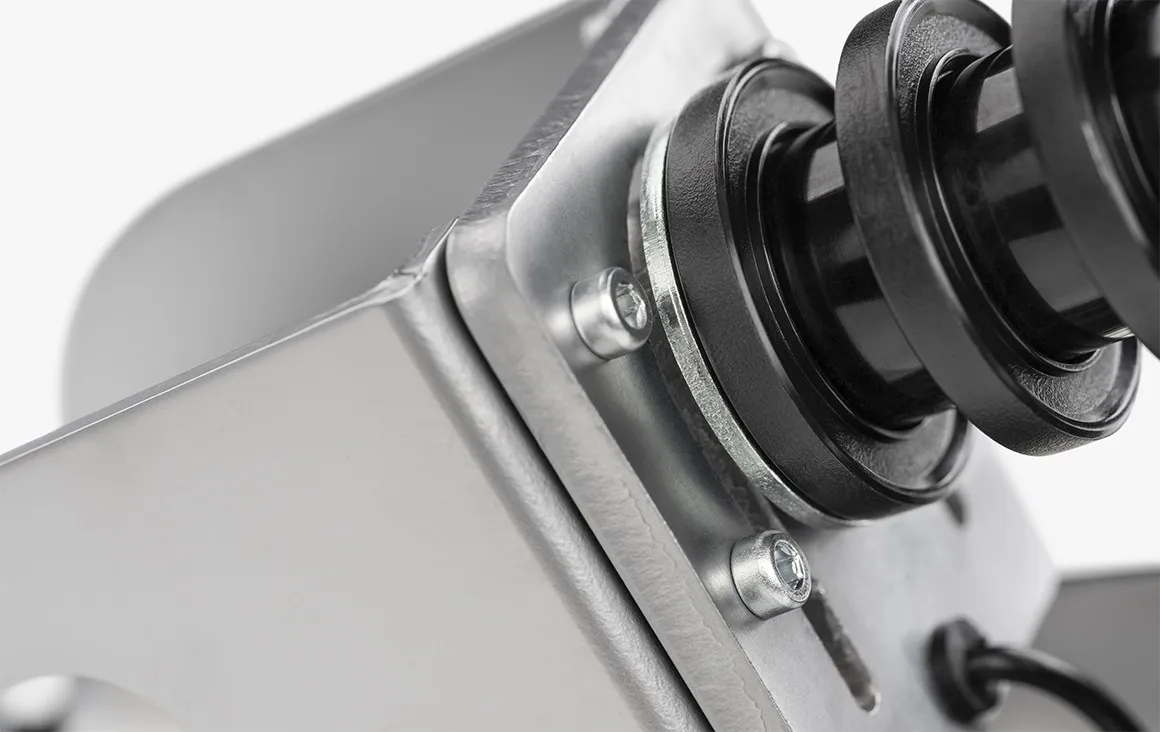

• Custom-designed load cell sensor
  • 12-bit precision
  • Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
• Heavy-duty elastomer stack with 65 Shore hardness
• Upgraded electronics

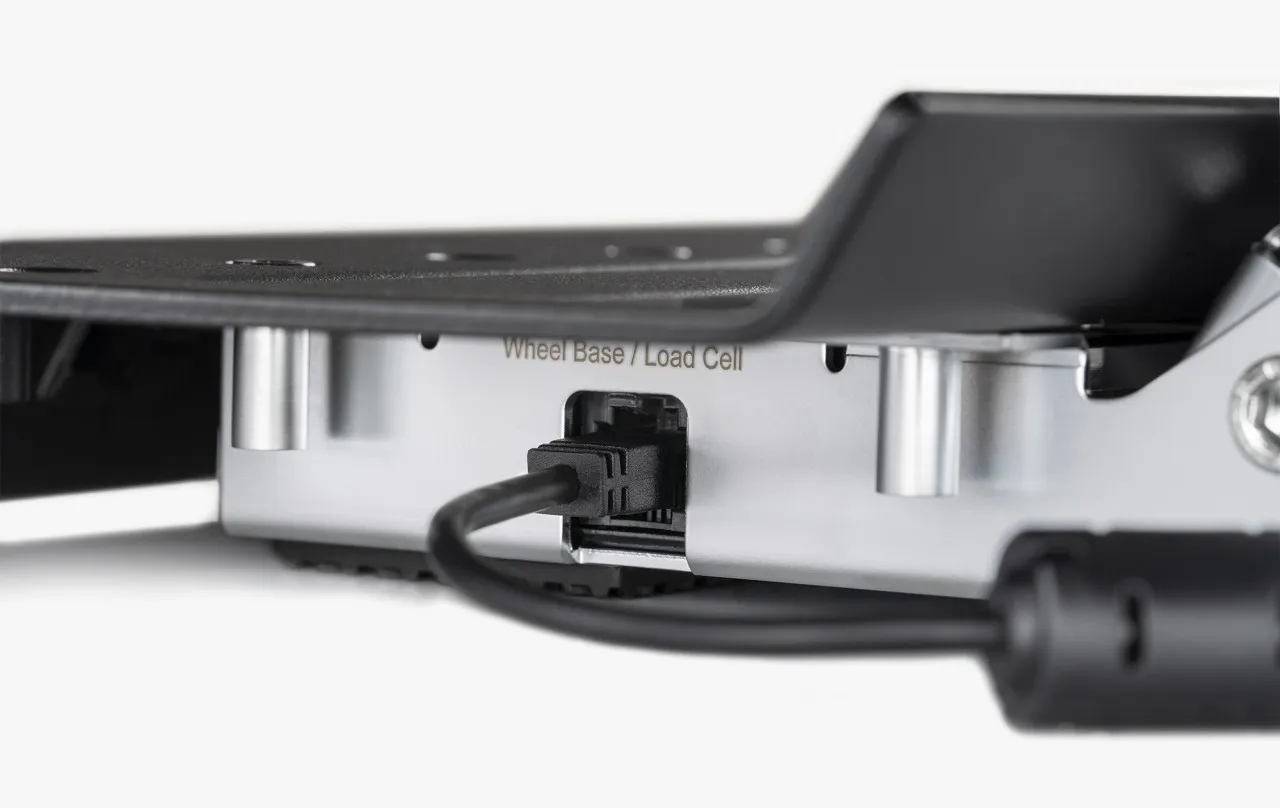

  • USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)
  • Manual calibration of Min and Max values possible, settings saved to the internal memory

Compatibility

Price: 199.95€
