3dRap is a Italian manufacturer focused on 3D printing which is well known for offering ingenious solutions and mods for commercial wheel, pedals and shifters. Now they launch its first set of complete pedals with all learned experience.
Ngasa is designed with three main goals: realism, performance and customization.
Load Cell and Hall Sensors, with an electronic up to 16bit, can give you all the precision you need.
The mechanical regulations, togheter with the CBF System, give you the opportunity to shape the simdriving experience and boost your performance.
IMAGES
FEATURES
- 16-bit electronics
- HALL sensors
- Load cell on brake with modulable elastomer
- Structure in stainless steel
- Movement kinematics completely on bearings (no bushings, no uniball)
- Innovative CBF (Cam Based Feeling) system to maximize driving sensations
- Electronic self-configuration system
- Dozens of adjustments for each pedal
Electronics (included): The microcontroller of our electronics is capable of recording the brake load cell signal with a resolution of 16 bits, while the Hall sensor of the accelerator and clutch is converted with a resolution of 12 bits. Allows automatic calibration by fully pressing the pedals after connecting the USB to the PC or Logitech Base and PS4/PS5.

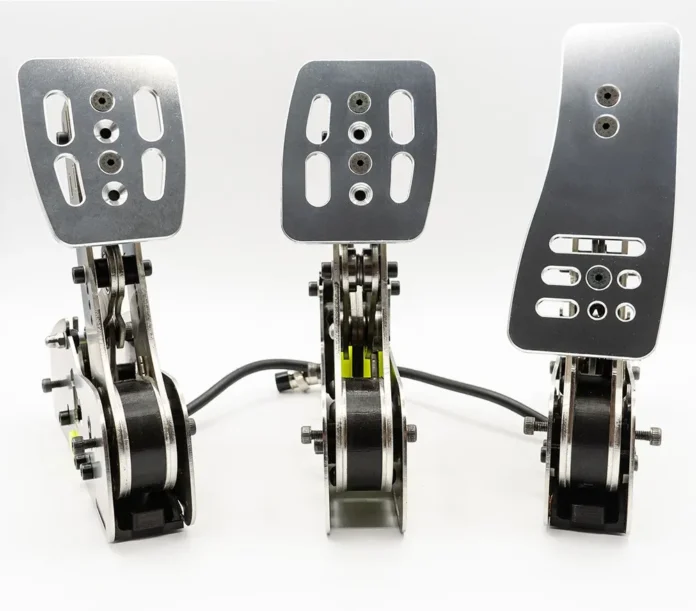

Pedals: With the NGASA GT Kit you will have the 3 pedals of a complete car: Accelerator, Clutch and Brake.
The Accelerator: is equipped with a 12-bit Hall sensor, and allows you to choose between a Lite version and a Pro version.
- With the Pro version of the Ngasa Accelerator you can fully enjoy the driving experience offered by the CBF system.
- The Lite version, on the other hand, is equipped with the classic return spring, but you can, at any time, transform it into the Pro version thanks to the Upgrade Kit provided by 3Drap.
- Thanks to the pedal adjustments and the replaceable cam, it is possible to fully customize the feeling and behavior of the accelerator.
The NGASA Brake has a load cell with a resolution of 16 bits, and allows to apply a force up to 100kgf.
- Thanks to the interchangeable pad, and to the adjustments, it is possible to vary the feeling of the pedal at any time.
- Progressive and linear pads included in the package.
The Clutch is equipped with a 12-bit Hall Sensor, and also allows you to choose between a Pro version and a Lite version.
- The Lite version, on the other hand, is equipped with the classic return spring, but you can, at any time, transform it into the Pro version thanks to the Upgrade Kit provided by 3Drap.
- Thanks to the pedal adjustments and the replaceable cam, it is possible to fully customize the feeling and behavior of the accelerator.
The Kit is offered in two versions:
- Lite: Lite throttle + Lite clutch + Brake
- Pro: Pro throttle + Pro clutch + Brake
Base (optional and NOT included): The Ngasa Base GT allows you to mount 3 pedals on a solid 4mm steel frame.
Compatibility
At the moment the electronics of the nGASa pedal are compatible with PC, through USB, and PS4 / PS5 through Logitech Sim Racing Base. Future updates will allow the use on other platforms, updating or replacing only the electronic box.
Personalization, branding, stickers
- Simracers can customize Ngasa Pedalboard with unique stickers and designs, even for Teams and Championships.
- Thanks to our collaboration with CostaEst it is possible to create your own sticker to be applied on the pedal board: just visit the store, and proceed with the order.
- If you do not have a design, no problem, contact us and we will provide you with a quote for the creation of your style!
Price
- Set 3 pedals PRO: 649€ (549€ Lite) (VAT included)
- Set 2 pedals PRO: 499€ (459€ Lite) (VAT included)
You can purchase with a 2% OFF in Simufy using our code (SFYOPTF7ZMR98) or clicking here: Ngasa Pedals
